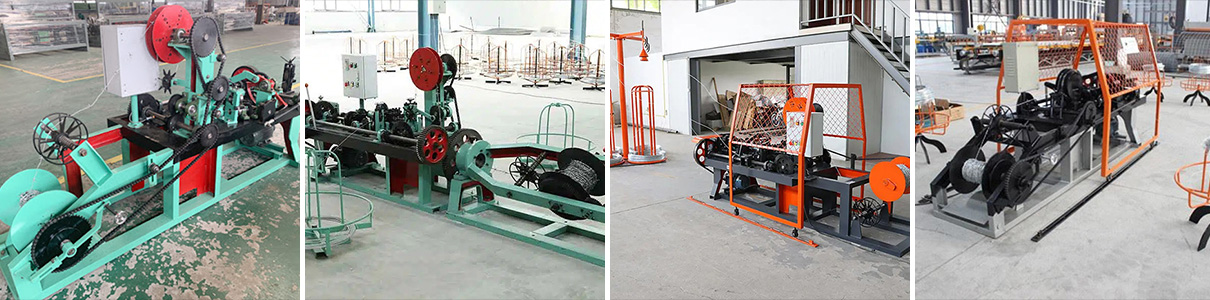

Barbed Wire Machine
High speed Barbed wire machine is used to produce barbed wire.
Quantity
High speed Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function. For example national defense, railways, highways, agriculture and animal husbandry and other industries.
The normal twisted barbed wire machine consists of two parts: winding the barbed wire and tightening the barbed wire, and requires four wires.
The equipment is easy to operate, stable in operation, low in noise, low in energy consumption, has safety measures in place, and adopts advanced electronic counting control. The barbed wire machines we produce are far ahead in China and even the world.
| Model | CS-A | CS-B | CS-C |
| Main wire diameter | 1.44-3.0mm(Max.800MPA) | 1.4mm-3.0mm(Max.1200MPA) | 1.4-2.8MM(mAX.1200mpa) |
| Barbed wire diameter | 1.4-2.8mm(Max.700MPA) | 1.4-2.8mm(Max.700MPA) | 1.4-2.8MM(Max.700MPA) |
| Barbed space | 3",4",5",6" | 4",5" | 3",4",5"or 5",5",5" |
| Motor power | 2.2kw | 2.2kw | 2.2kw |
| Twisted number | 3-5 | 7 | |
| Raw material | Galvanized wire or pvc coated wire | Galvanized wire | Galvanized wire |
| Production | 70-150kg/h, 25 meters/min | 50-100kg/h, 18meter/min | 80-150kg/h, 18 meter/min |
| Total Weight | 1200kg | 1000kg | 1000kg |
| Dimension | 1950*950*1300mm 1976*550*760mm | 3100*1000*1150MM | 3100*1000*11500mm |
