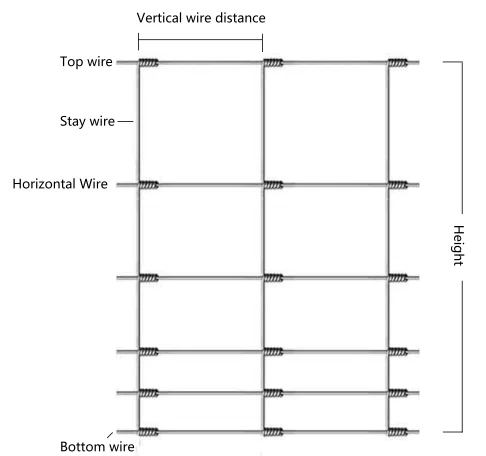

This is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, they also can be used with barbed wire or chicken wire for farm fencing,garden fencing, road fencing, forest fencing and so on.
cattle wire fence also called field fence ,grassland fence ,hinge joint knots .The cattle wire fence is found on both galvanized low carbon and high tensile wire products.
This is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, they also can be used with barbed wire or chicken wire for farm fencing,garden fencing, road fencing, forest fencing and so on.
Height Range:0.6 to 2.5 meter available.
Vertical wire distance:50,100,150,200,250,
300,350,400mm available
Length:50Meter,100 Meter and 150
Meter available.
Wire Material Finishing :Hot Dipped
Galvanized,ElectroGalvanized. Galvanized
| Table 1:Wire Diameter and Tensile Strength of Cattle Fence | ||||||||
| Light Duty Fence | Middle Duty Fence | Heavy Duty Fence | Extra Heavy Duty Fence | |||||
| Wire Diameter(mm) | Minmum Tensile Stength(N/mm2) | Wire Diameter(mm) | Minmum Tensile Stength(N/mm2) | Wire Diameter(mm) | Minmum Tensile Stength(N/mm2) | Wire Diameter(mm) | Minmum Tensile Stength(N/mm2) | |
| Top and Bottom Horizontal Wire Other Horizontal | 2.0 | 650 | 2.5 | 650 | 3.0 | 650 | 3.7 | 650 |
| Wires and Vertical Wire | 1.6 | 450 | 2.0 | 450 | 2.5 | 450 | 3.0 | 450 |

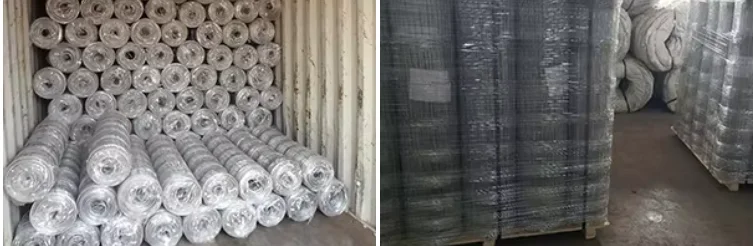

The standard package,FCL is in bulk,and the LCL is with the wooden pallet.Provide custom packaging services such as label design.

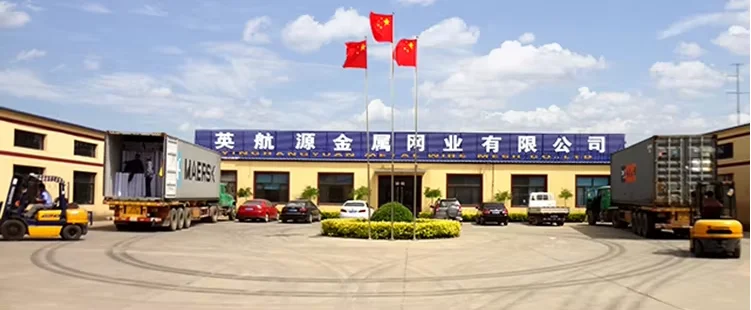

Company Profile
