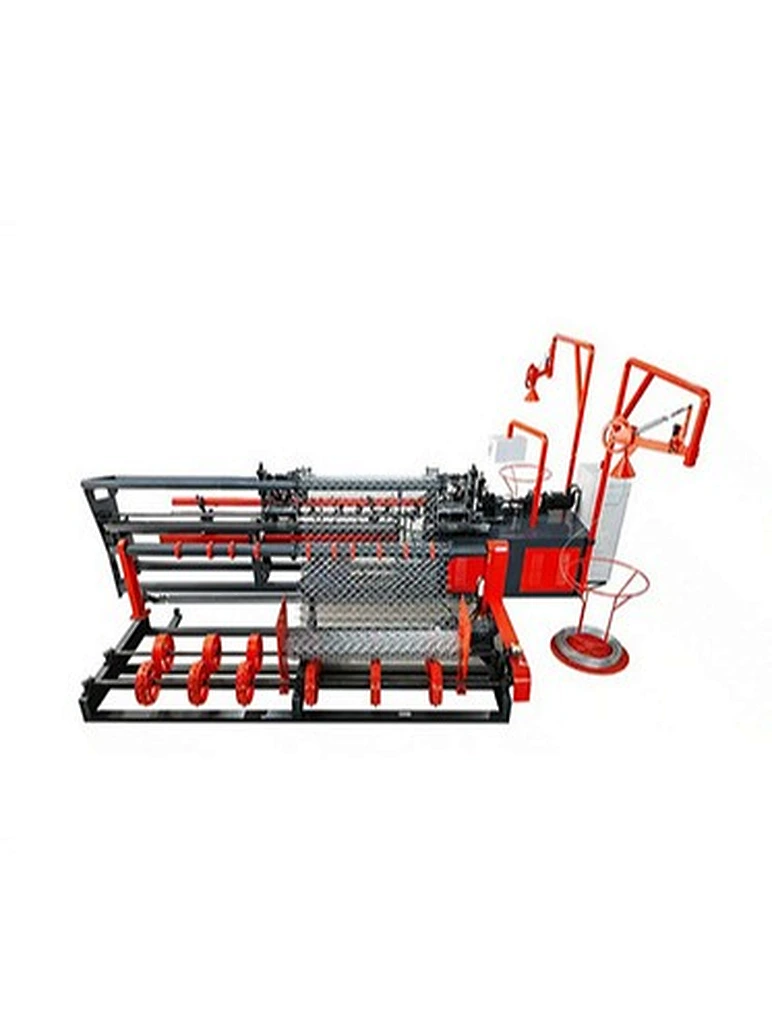

Double Wire Chain Link Fence Machine
Easy operation and high-speed efficiency.
Quantity
The automatic chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable.
Easy operation and high-speed efficiency. We mainly have two models of machines: DP-25-80 (Double wire) and DP-20-100 (Single wire).
This type of machine uses a double-sided spiral into the wire to weave the wire mesh. It has high productivity and is equipped with automatic locking and automatic roll netting system.
| Model | DP-25-80 |
|---|---|
| Wire diameter | 1.8-4mm |
| Mesh size | 25-100mm |
| Mesh width | Max.3m/4m |
| Speed | 120-180m²/h |
| Mesh length | 30m, adjustable freely as per your request |
| Mesh side | Knuckled and twisted, or knuckle, or twisted |
| Raw material | Galvanized wire, PVC-coated wire, etc. |
| Machine size | 6.7*1.43*1.8m |
| Weight | 3900kg/4200kg |
