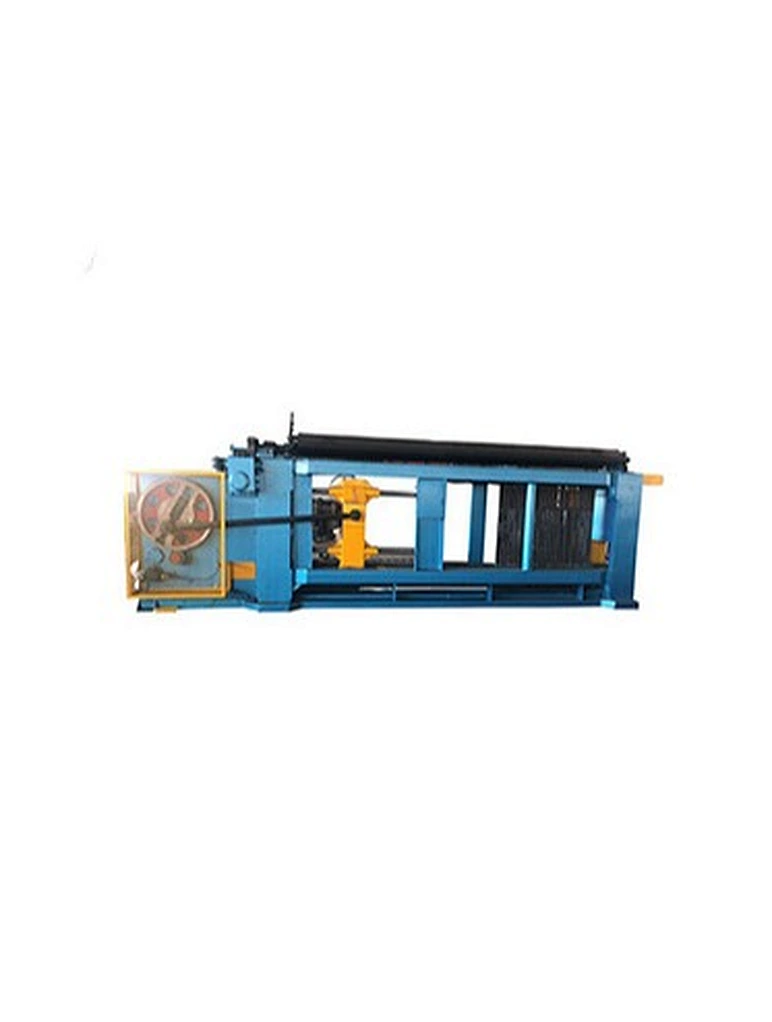

Gabion Mesh Machine
It is also called heavy duty hexagonal wire mesh machine.
Quantity

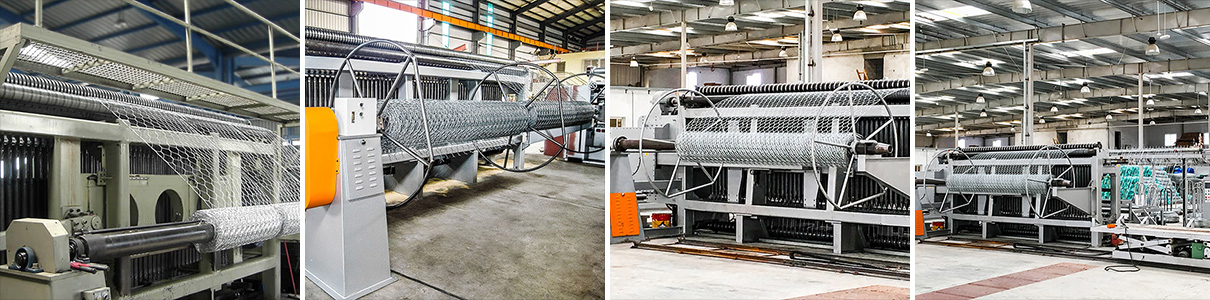

Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.
Our machine has several models for different sizes of meshes and the maximum netting width is up to 4500mm. We can accept any special orders from clients.
| Model | Mesh Size | Max.Width | Wire diameter | Twisting Number | Main drive shaft speed | Motor Capacity | Theoretical speed |
| / | mm | mm | mm | / | / | / | m/h |
| LNWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| LNWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| LNWL23-1200-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL33-60-2 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| LNWL33-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL33-100-2 | 100*120 | 1.6-3.2 | 225 | ||||
| LNWL33-120-2 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| LNWL43-60-2 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| LNWL43-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-2 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| LNWL43-60-3 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
| LNWL43-80-3 | 80*100 | 1.6-3.0 | 195 | ||||
| LNWL43-100-3 | 100*120 | 1.6-3.0 | 225 | ||||
| LNWL43-120-3 | 120*150 | 1.6-3.2 | 20 | 255 |
