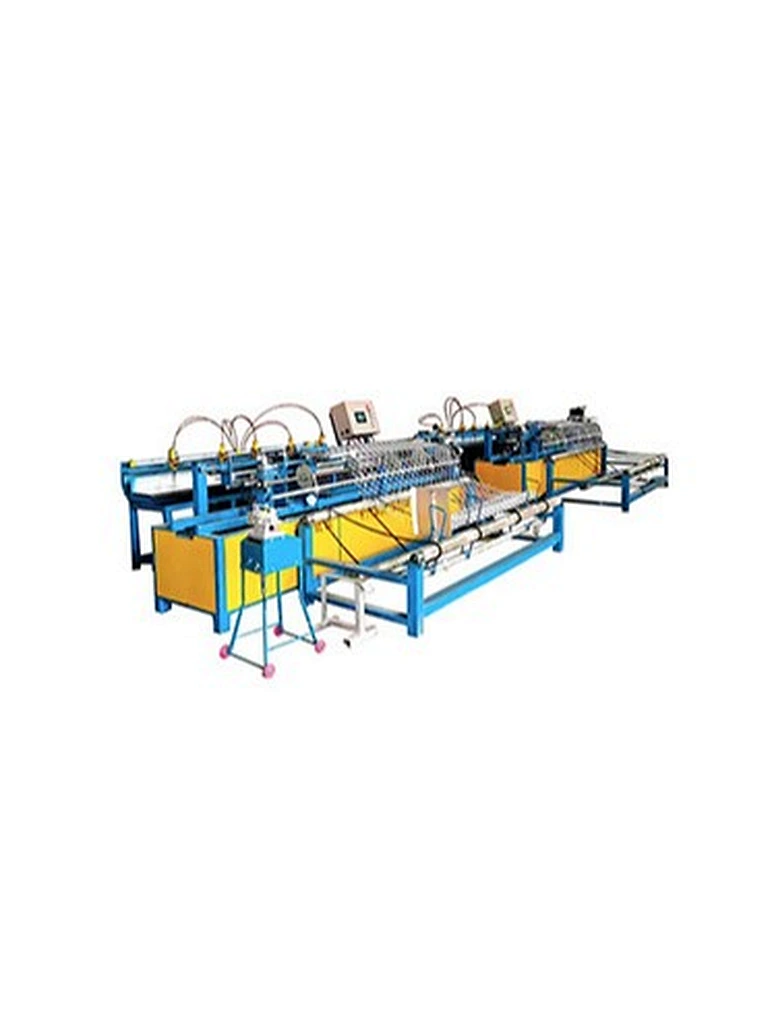

Single Wire Chain Link Fence Machine
Easy operation and high-speed efficiency.
Quantity

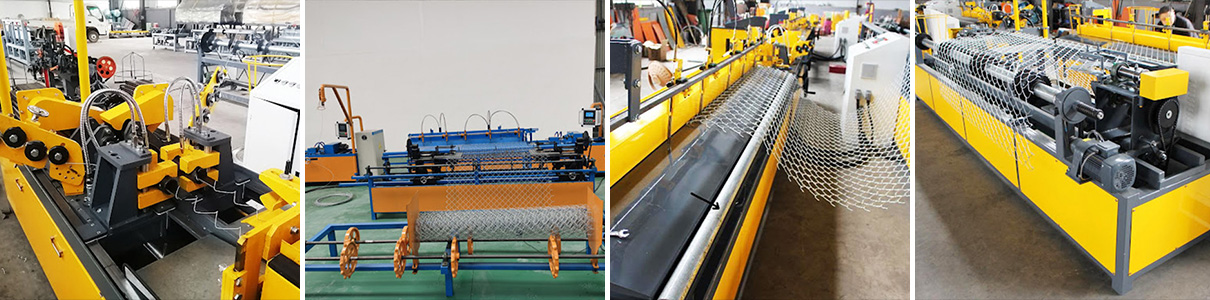

The automatic chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable.
Easy operation and high-speed efficiency. We mainly have two models of machines: DP-25-80 (Double wire) and DP-20-100 (Single wire).
This type of machine adopts a single-sided spiral into the wire to weave the wire mesh. And equipped with automatic locking edge and automatic roll net system. Easy to operate and debug.
| Model | DP-20-100 | DP-25-80 |
| Wire diameter | 1.6-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2000kg | 4200kg |
